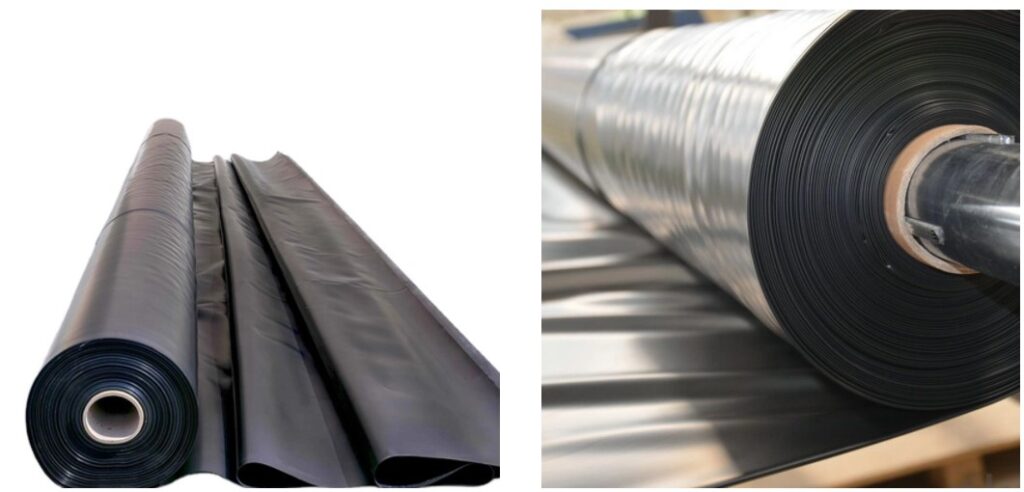

Geomembrane Product Description
Our Geomembrane is fabricated by the state of the art automatic geomembrane production lines and advanced three layered pressing technology in accordance with GRI GM13 standard. Compared with traditional concrete, asphalt and compacted clay, smooth geomembrane HDPE Liner has proven to be far more cost effective, environmentally safe, excellent durable, chemically resistant, fast deployment and easy transportation.
Technical Parameter :
| Spec Properties | Test method ASTM | GMS0.5 | GMS0.75 | GMS1.0 | GMS1.25 | GMS1.5 | GMS2.0 | GMS2.5 |
| Thickness | D5199 | 0.5mm | 0.75mm | 1.00mm | 1.25mm | 1.50mm | 2.00mm | 2.50mm |
| Density (≥ g/cc) | D1505 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 | 0.940 |
| Tensile Properties (Each direction) (≥) • yield strength • break strength • yield elongation • break elongation | D 6693 Type IV | 8 kN/m 14kN/m 12% 700% | 11 kN/m 20kN/m 12% 700% | 15 kN/m 27 kN/m 12% 700% | 18 kN/m 33 kN/m 12% 700% | 22 kN/m 40 kN/m 12% 700% | 29 kN/m 53 kN/m 12% 700% | 37kN/m 67kN/m 12% 700% |
| Tear Resistance (≥) | D 1004 | 64 N | 93 N | 125 N | 156 N | 187 N | 249 N | 311 N |
| Puncture Resistance (≥) | D 4833 | 160 N | 240 N | 320 N | 400 N | 480 N | 640 N | 800 N |
| Stress Crack Resistance (≥) | D 5397 | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. | 300 hr. |
| Carbon Black Content | D 1603 | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% | 2.0-3.0% |
| Carbon Black Dispersion | D 5596 | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) | Note(1) |
| Oxidative Induction Time (OIT) (≥) (a)Standard OIT – or – (b)High Pressure OIT | D 3895 D 5885 | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. | 100 min. 400 min. |
Features:
- Excellent chemical resistance.
- Outstanding stress crack capacity.
- Lowest permeability.
- Excellent UV resistance.
- Stable low temperature embrittlement resistance.
- Complete width and thickness specifications.
- Cost effective.
- Proven performance.
- Fast deployment.
- Easy transportation.
- Meet or exceed all aspects of GRI GM13.
Product Application

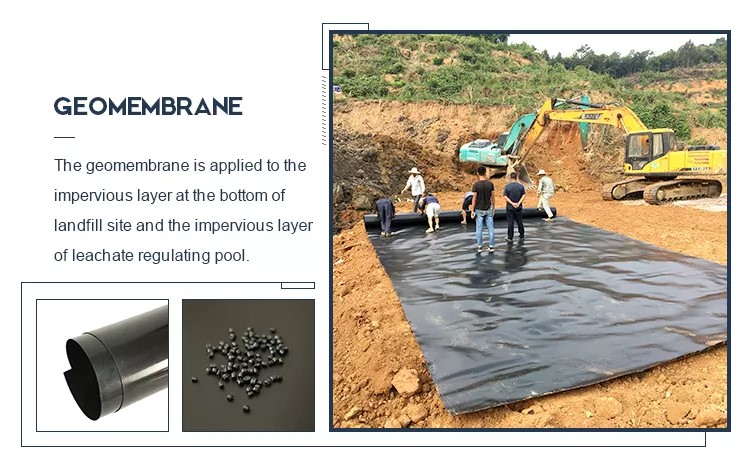

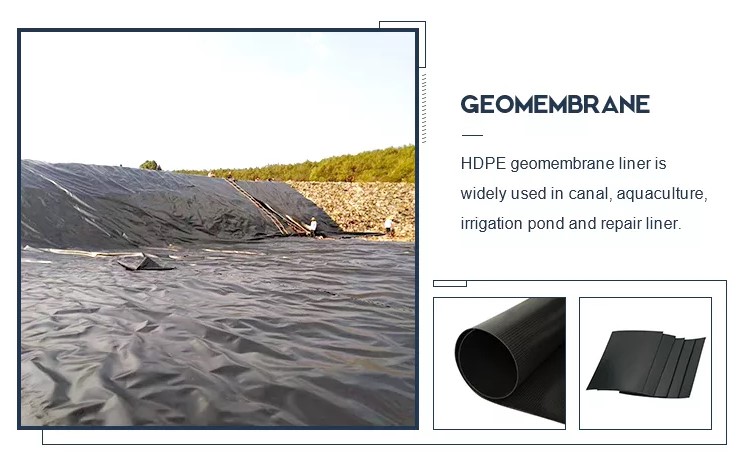

1.Various waterproof and anti-seepage projects such as landfills,solid waste treatment stations,tailings storage yards
2.sewage ponds,petrochemicals, construction, water conservancy,mining,landscape gardens,subway tunnels,
aquaculture,livestock biogas digesters, etc.
3.Environmental protection projects:Landfill,sewage treatment plants,power plant regulating pools,industrial and hospital solid wastes,etc.

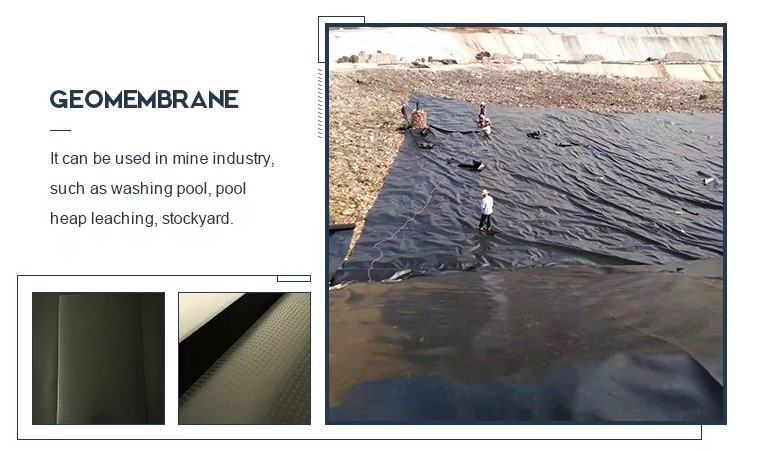

4.Mining:heap leaching platforms, conduit and retention channels and wells for liquid solutions, , final disposal reservoirs.
FAQ
Q: Are you trading company or manufacturer?
We are factory.
Q:Is the quality of your products stable?
The company has a complete QC system, and each batch of products will be sampled and the samples will be kept for 5 years.
Q:Can you do OEM?
Yes, of course. We can produce the products as your request.
Q: Do you provide samples? is it free?
Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How long is your delivery time?
Generally it is 5-10 days if the goods are in stock. or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment?
Payment<=5000USD, 100% in advance. Payment>=5000USD, 30% T/T in advance,balance before shipment.
If you have another question, please feel free to contact us at any time.
